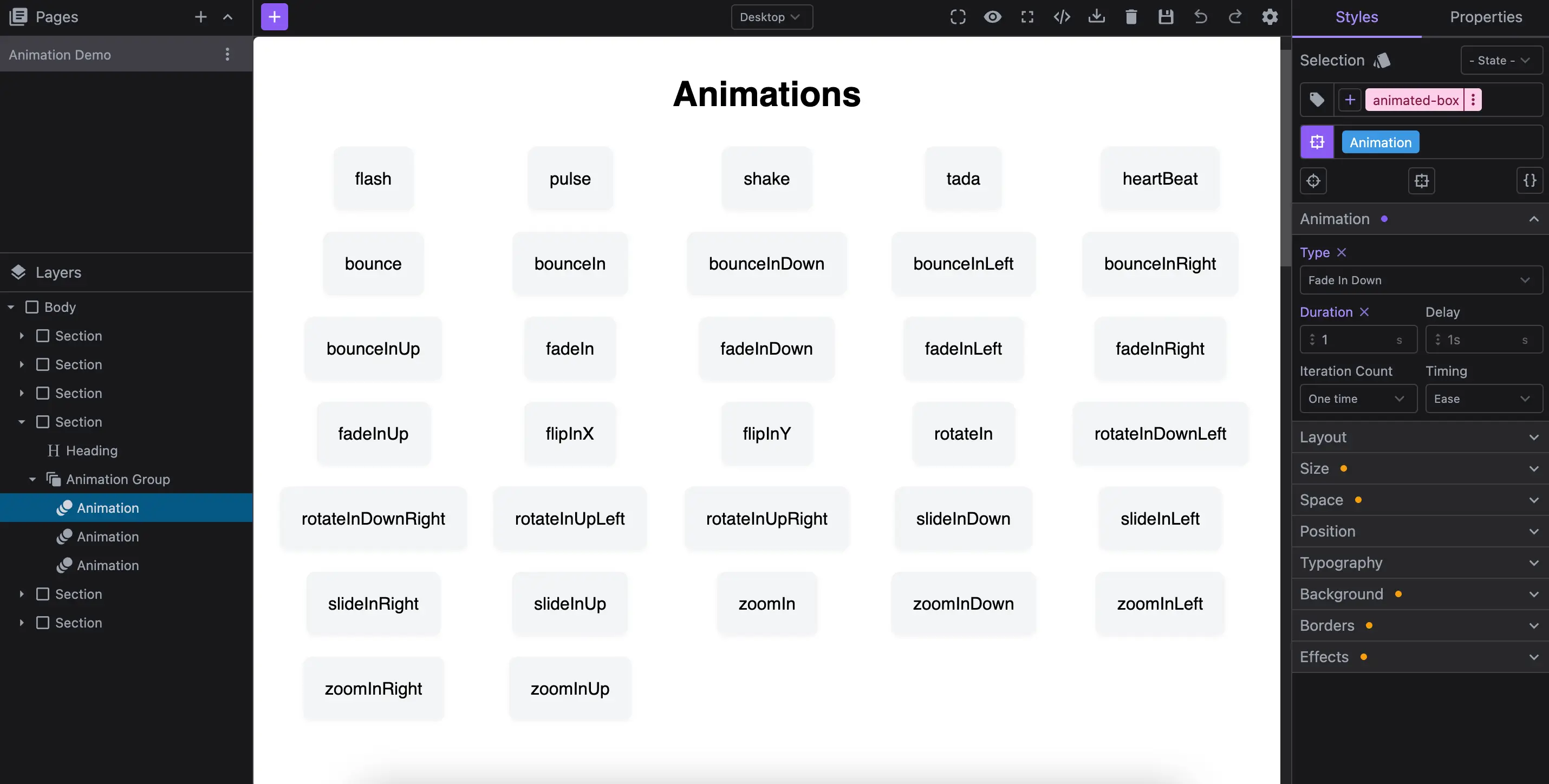

This plugin adds scroll-triggered animation components using built-in or custom CSS animations. It supports grouping for staggered effects and provides editor controls to fine-tune playback timing.

Animation plugin

Install the Studio SDK plugins package:

npm i @grapesjs/studio-sdk-plugins

Import and use the plugin in your project:

import StudioEditor from '@grapesjs/studio-sdk/react';
import '@grapesjs/studio-sdk/style';
import { animationComponent } from "@grapesjs/studio-sdk-plugins";
// ...
<StudioEditor
  options={{
      // ...
      plugins: [
        animationComponent.init({
          animations({ items }) {
            return [
              ...items, // Keep existing animations
              // Add your custom animations here
              {
                id: 'customWiggle',
                name: 'Custom Wiggle',
                css: `
                @keyframes customWiggle {
                  0% { transform: rotate(0deg); }
                  15% { transform: rotate(-5deg); }
                  30% { transform: rotate(5deg); }
                  45% { transform: rotate(-5deg); }
                  60% { transform: rotate(3deg); }
                  75% { transform: rotate(-2deg); }
                  100% { transform: rotate(0deg); }
                }`
              }
            ];
          }
        })
      ],
      project: {
        default: {
          pages: [
            {
              name: 'Animation Demo',
              component: `
                <style>
                  body {
                    font-family: sans-serif;
                    padding: 0;
                    margin: 0;
                  }
                  section {
                    padding: 50px 20px;
                    text-align: center;
                    border-bottom: 1px solid #eee;
                  }
                  h1 {
                    font-size: 2rem;
                    margin-bottom: 20px;
                  }
                  .animated-box {
                    background: #f3f4f6;
                    padding: 20px;
                    margin: 10px auto;
                    max-width: 400px;
                    border-radius: 8px;
                    box-shadow: 0 1px 4px rgba(0,0,0,0.05);
                  }
                  .animation-grid {
                    display: grid;
                    grid-template-columns: repeat(5, 1fr);
                  }
                </style>

                <section style="min-height: 100vh">
                  <h1>Animations</h1>
                  <div class="animation-grid">
                    <div data-gjs-type="animation" style="animation-name: flash" class="animated-box">flash</div>
                    <div data-gjs-type="animation" style="animation-name: pulse" class="animated-box">pulse</div>
                    <div data-gjs-type="animation" style="animation-name: shake" class="animated-box">shake</div>
                    <div data-gjs-type="animation" style="animation-name: tada" class="animated-box">tada</div>
                    <div data-gjs-type="animation" style="animation-name: heartBeat" class="animated-box">heartBeat</div>
                    <div data-gjs-type="animation" style="animation-name: bounce" class="animated-box">bounce</div>
                    <div data-gjs-type="animation" style="animation-name: bounceIn" class="animated-box">bounceIn</div>
                    <div data-gjs-type="animation" style="animation-name: bounceInDown" class="animated-box">bounceInDown</div>
                    <div data-gjs-type="animation" style="animation-name: bounceInLeft" class="animated-box">bounceInLeft</div>
                    <div data-gjs-type="animation" style="animation-name: bounceInRight" class="animated-box">bounceInRight</div>
                    <div data-gjs-type="animation" style="animation-name: bounceInUp" class="animated-box">bounceInUp</div>
                    <div data-gjs-type="animation" style="animation-name: fadeIn" class="animated-box">fadeIn</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInDown" class="animated-box">fadeInDown</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInLeft" class="animated-box">fadeInLeft</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInRight" class="animated-box">fadeInRight</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInUp" class="animated-box">fadeInUp</div>
                    <div data-gjs-type="animation" style="animation-name: flipInX" class="animated-box">flipInX</div>
                    <div data-gjs-type="animation" style="animation-name: flipInY" class="animated-box">flipInY</div>
                    <div data-gjs-type="animation" style="animation-name: rotateIn" class="animated-box">rotateIn</div>
                    <div data-gjs-type="animation" style="animation-name: rotateInDownLeft" class="animated-box">rotateInDownLeft</div>
                    <div data-gjs-type="animation" style="animation-name: rotateInDownRight" class="animated-box">rotateInDownRight</div>
                    <div data-gjs-type="animation" style="animation-name: rotateInUpLeft" class="animated-box">rotateInUpLeft</div>
                    <div data-gjs-type="animation" style="animation-name: rotateInUpRight" class="animated-box">rotateInUpRight</div>
                    <div data-gjs-type="animation" style="animation-name: slideInDown" class="animated-box">slideInDown</div>
                    <div data-gjs-type="animation" style="animation-name: slideInLeft" class="animated-box">slideInLeft</div>
                    <div data-gjs-type="animation" style="animation-name: slideInRight" class="animated-box">slideInRight</div>
                    <div data-gjs-type="animation" style="animation-name: slideInUp" class="animated-box">slideInUp</div>
                    <div data-gjs-type="animation" style="animation-name: zoomIn" class="animated-box">zoomIn</div>
                    <div data-gjs-type="animation" style="animation-name: zoomInDown" class="animated-box">zoomInDown</div>
                    <div data-gjs-type="animation" style="animation-name: zoomInLeft" class="animated-box">zoomInLeft</div>
                    <div data-gjs-type="animation" style="animation-name: zoomInRight" class="animated-box">zoomInRight</div>
                    <div data-gjs-type="animation" style="animation-name: zoomInUp" class="animated-box">zoomInUp</div>
                  </div>
                </section>

                <section>
                  <h1>Scroll-triggered</h1>
                  <div data-gjs-type="animation" style="animation-name: slideInLeft" class="animated-box">SlideInLeft</div>
                  <div data-gjs-type="animation" style="animation-name: zoomIn; animation-delay: 0.5s" class="animated-box">ZoomIn with delay</div>
                </section>

                <section>
                  <h1>Repeat on scroll</h1>
                  <div data-gjs-type="animation" style="animation-name: slideInLeft; --animation-repeat: true" class="animated-box">SlideInLeft</div>
                  <div data-gjs-type="animation" style="animation-name: zoomIn; --animation-repeat: true" class="animated-box">ZoomIn</div>
                </section>

                <section>
                  <h1>Grouped Animations (Staggered)</h1>
                  <div data-gjs-type="animation-group">
                    <div data-gjs-type="animation" style="animation-name: fadeInDown" class="animated-box">Item 1</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInLeft" class="animated-box">Item 2</div>
                    <div data-gjs-type="animation" style="animation-name: fadeInUp" class="animated-box">Item 3</div>
                  </div>
                </section>

                <section>
                  <h1>Grouped Animations (Repeat on scroll)</h1>
                  <div data-gjs-type="animation-group" style="--animation-repeat: true">
                    <div data-gjs-type="animation" style="animation-name: fadeIn" class="animated-box">Item 1</div>
                    <div data-gjs-type="animation" style="animation-name: fadeIn" class="animated-box">Item 2</div>
                    <div data-gjs-type="animation" style="animation-name: fadeIn" class="animated-box">Item 3</div>
                  </div>
                </section>

                <section>
                  <h1>Custom Animations</h1>
                  <div data-gjs-type="animation" style="animation-name: customWiggle; animation-duration: 1.5s" class="animated-box">
                    Custom "wiggle" animation
                  </div>
                </section>
                `
            }
          ]
        }
      }


  }}
/>

Plugin options​

PropertyTypeDescription
licenseKey
string

The license key for the plugin. This is optional, only required if the plugin is used outside of Studio SDK.

Example
"your-license-key"
block
Block

Additional Block properties of the animation component. Pass false to avoid adding the block.

Example
{
  "category": "Extra",
  "label": "My label"
}
blockGroup
Block

Additional Block properties of the animation group component. Pass false to avoid adding the block.

Example
{
  "category": "Extra",
  "label": "My label"
}
animations
function

Extend or update animation list.

Example
animations: ({ items }) => {
 return [
   // Remove bounce animations
   ...items.filter(item => !item.id.startsWith('bounce')),
   // Add custom animation
   {
     id: 'animationId',
     name: 'Custom animation',
     css: '@keyframes animationId { 0% { opacity: 0; } 100% { opacity: 1; } }',
   }
 ]
}
animationStyle
object

Initial style object of the animation component.

Example
{
  "animation-duration": "0.5s"
}
animationGroupStyle
object

Initial style object of the animation group component.

Example
{
  "--stagger-delay": "0.5s"
}
