Printable

Project types
document
Plan
Free plan

This preset plugin is designed to help you build HTML content that's consistent and optimized for printing. It includes default printable device sizes (like A4, A5, etc.), additional components (eg. pageBreak component) and provides utility commands such as triggering the browser's print preview across all pages.

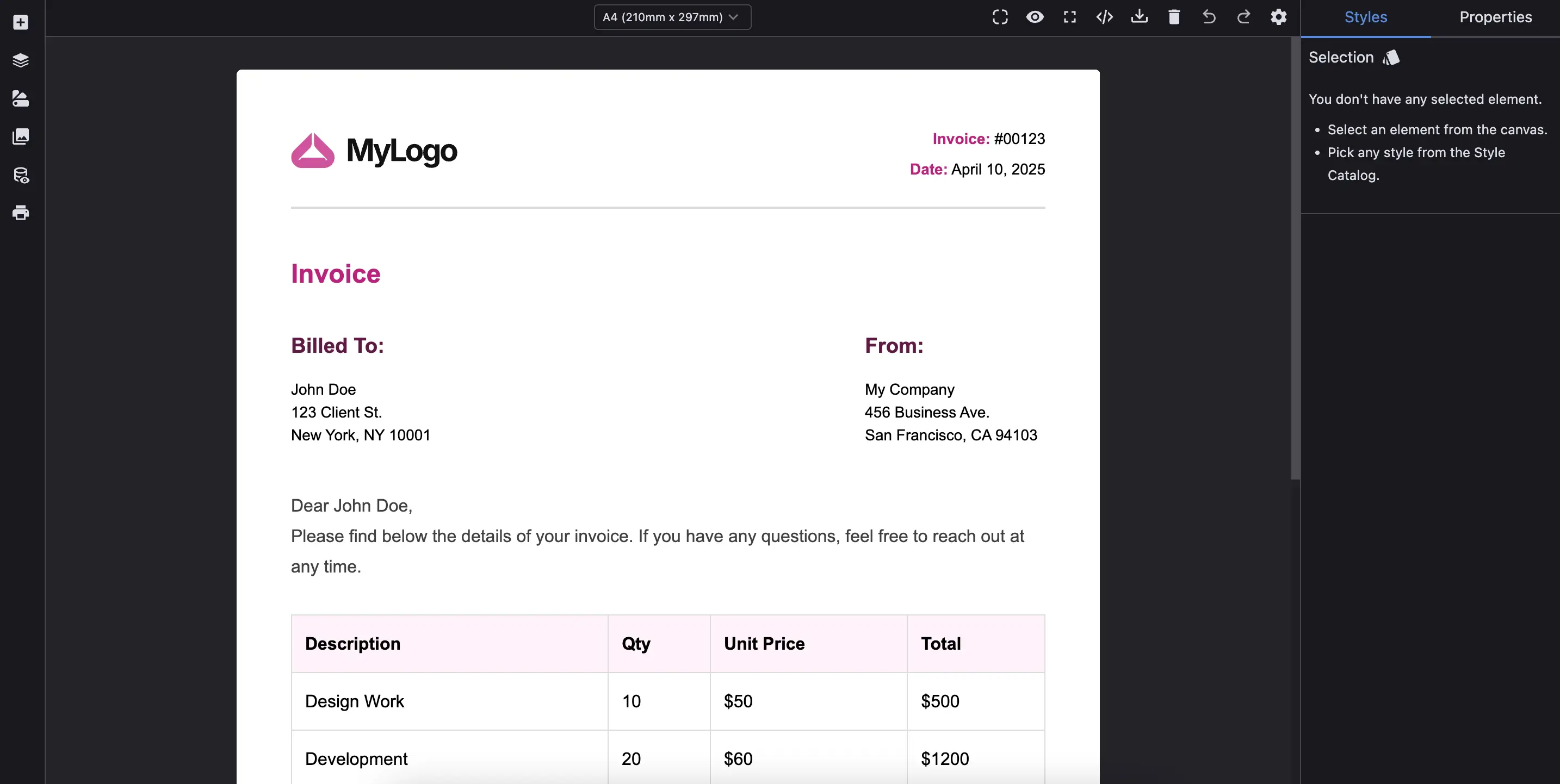

Printable plugin

Install the Studio SDK plugins package:

npm i @grapesjs/studio-sdk-plugins

Import and use the plugin in your project:

import StudioEditor from '@grapesjs/studio-sdk/react';
import '@grapesjs/studio-sdk/style';
import { presetPrintable, canvasFullSize } from '@grapesjs/studio-sdk-plugins';
// ...
<StudioEditor
  options={{
      // ...
      plugins: [
        presetPrintable,
        canvasFullSize, // Optional
      ],
      project: {
        type: 'document', // Ensure the project type is set to 'document'
        default: {
          pages: [
            {
              name: 'Invoice',
              component: `<!DOCTYPE html>
                <html>
                  <body style="padding: 40px; font-family: Arial, Helvetica, sans-serif">
                    <header class="invoice-header flex-between mb-40">
                      <div>
                        <h1>INVOICE</h1>
                        <p class="mb-4">#INV-00123</p>
                        <p class="mb-4">Date: 2025-05-28</p>
                      </div>
                      <div style="line-height: 1.5rem">
                        <strong>Your Company</strong><br />
                        123 Business Street<br />
                        City, Country
                      </div>
                    </header>

                    <section class="mb-40">
                      <h3 class="mb-10">Bill To:</h3>
                      <div style="line-height: 1.5rem">
                        Client Name<br/>
                        Client Company<br/>
                        456 Client Road<br/>
                        City, Country<br/>
                      </div>
                    </section>

                    <table class="invoice-table">
                      <thead>
                        <tr>
                          <th>Description</th>
                          <th>Qty</th>
                          <th>Unit Price</th>
                          <th>Total</th>
                        </tr>
                      </thead>
                      <tbody>
                        <tr>
                          <td>Design Services</td>
                          <td>10</td>
                          <td>$50</td>
                          <td>$500</td>
                        </tr>
                        <tr>
                          <td>Hosting (3 months)</td>
                          <td>1</td>
                          <td>$150</td>
                          <td>$150</td>
                        </tr>
                      </tbody>
                    </table>

                    <section class="total-section mb-40" style="text-align: right;">
                      <p class="mb-4"><strong>Subtotal:</strong> $650</p>
                      <p class="mb-4"><strong>Tax (10%):</strong> $65</p>
                      <p class="mb-4" style="font-size: 18px;"><strong>Total:</strong> $715</p>
                    </section>

                    <footer class="invoice-footer" style="text-align: center;">
                      Thank you for your business!<br />
                      Payment is due within 15 days.
                    </footer>
                  </body>
                  <style>
                    .flex-between {
                      display: flex;
                      justify-content: space-between;
                      align-items: center;
                    }

                    .mb-40 { margin-bottom: 40px; }
                    .mb-10 { margin-bottom: 10px; }
                    .mb-4 { margin-bottom: 4px; }

                    .invoice-header h1 {
                      margin: 0;
                    }

                    .invoice-table {
                      width: 100%;
                      border-collapse: collapse;
                      margin-bottom: 40px;
                    }

                    .invoice-table th,
                    .invoice-table td {
                      padding: 12px;
                      border: 1px solid #ddd;
                      text-align: right;
                    }

                    .invoice-table th:first-child,
                    .invoice-table td:first-child {
                      text-align: left;
                    }

                    .invoice-table thead {
                      background-color: #f5f5f5;
                    }

                    .invoice-footer {
                      font-size: 12px;
                      color: #888;
                    }
                  </style>
                <html>
              `,
            }
          ]
        }
      },
      // Custom layout for demo purposes
      layout: {
        default: {
          type: 'row',
          height: '100%',
          children: [
            {
              type: 'sidebarLeft',
              children: { type: 'panelLayers', header: { label: 'Layers', collapsible: false, icon: 'layers' } }
            },
            {
              type: 'canvasSidebarTop',
              sidebarTop: {
                rightContainer: {
                  buttons: ({ items }) => [
                    {
                      id: 'print',
                      icon: '<svg viewBox="0 0 24 24"><path d="M18 3H6v4h12m1 5a1 1 0 0 1-1-1 1 1 0 0 1 1-1 1 1 0 0 1 1 1 1 1 0 0 1-1 1m-3 7H8v-5h8m3-6H5a3 3 0 0 0-3 3v6h4v4h12v-4h4v-6a3 3 0 0 0-3-3Z"/></svg>',
                      onClick: ({ editor }) => editor.runCommand('presetPrintable:print')
                    },
                    ...items.filter(item => !['showImportCode', 'fullscreen'].includes(item.id))
                  ]
                }
              }
            },
            { type: 'sidebarRight' }
          ]
        }
      },


  }}
/>

Repeatable Elements​

The example below shows how to render collections of repeatable elements using dynamic data, ideal for print-ready layouts like badges, labels, or employee cards.

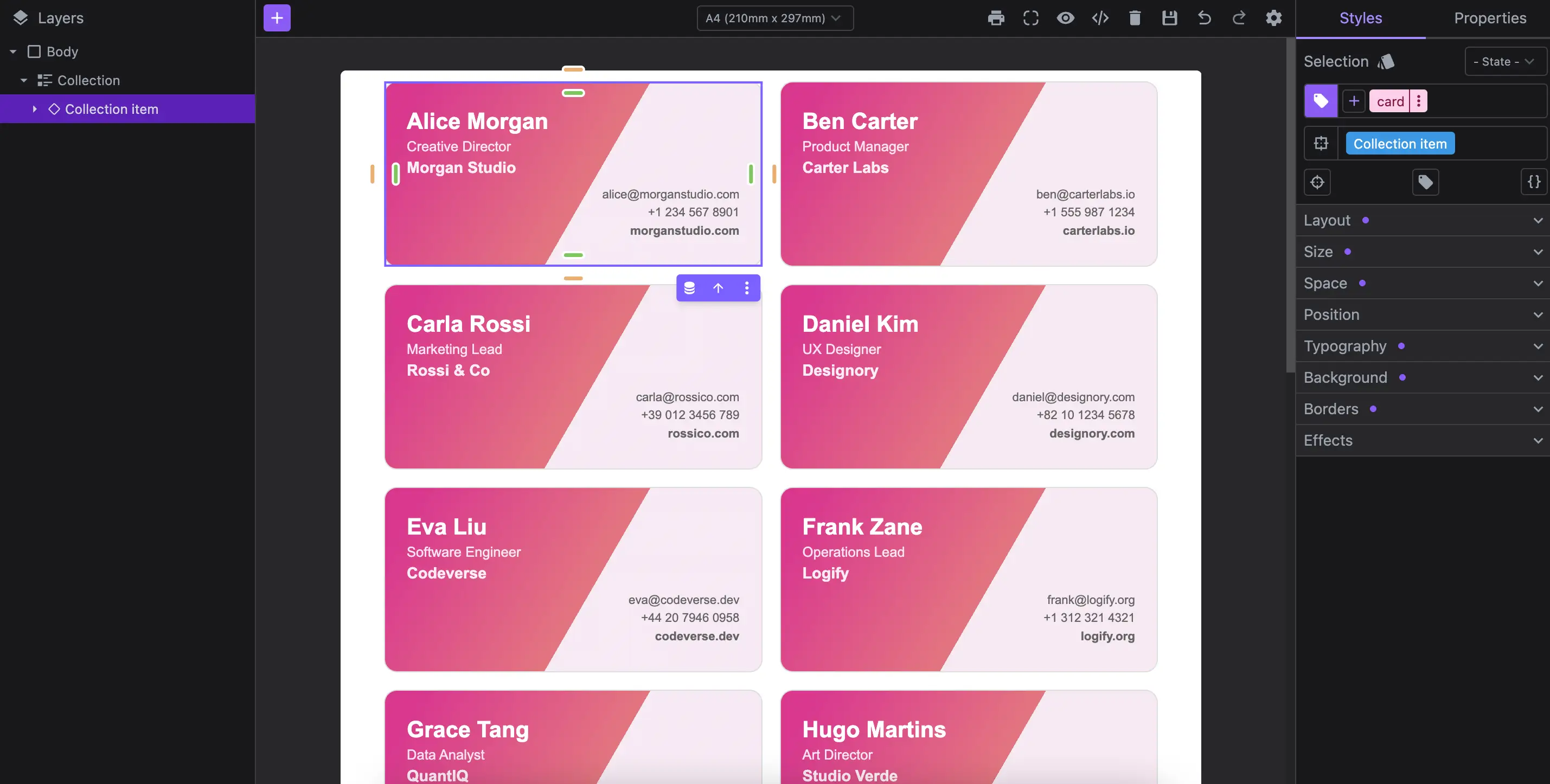

Printable plugin - Repeatable Elements
import StudioEditor from '@grapesjs/studio-sdk/react';
import '@grapesjs/studio-sdk/style';
import { presetPrintable, canvasFullSize } from '@grapesjs/studio-sdk-plugins';
// ...
<StudioEditor
  options={{
      // ...
      plugins: [
        presetPrintable.init({
          blockPageBreak: false
        }),
        canvasFullSize,
      ],
      project: {
        type: 'document',
        default: {
          pages: [
            {
              name: 'Invoice',
              component: `<!DOCTYPE html>
                <html>
                  <head>
                    <style>
                      .cards {
                        display: grid;
                        grid-template-columns: repeat(2, 1fr);
                        gap: 1em;
                      }
                      .card {
                        background-image:linear-gradient(120deg,rgba(217,56,143,1) 8%,rgba(227,118,128,1) 55%,rgba(247,234,244,1) 55%);
                        border-radius: 12px;
                        padding: 20px;
                        color: white;
                        height: 171px;
                        border: 1px solid #ddd;
                        display: flex;
                        flex-direction: column;
                        justify-content: center;
                      }

                      .card-left {
                        align-self: flex-start;
                      }

                      .card-right {
                        align-self: flex-end;
                        text-align: right;
                        color: #555;
                      }

                      .name {
                        font-size: 1.3em;
                        font-weight: 700;
                      }

                      .title {
                        font-size: 0.8em;
                        opacity: 0.85;
                        margin: 4px 0;
                      }

                      .company {
                        font-size: 0.9em;
                        font-weight: 600;
                        margin-bottom: 8px;
                        opacity: 0.9;
                      }

                      .contact {
                        font-size: 0.7em;
                        line-height: 1.5;
                        opacity: 0.9;
                      }
                    </style>
                  </head>
                  <body style="padding: 10px 40px; font-family: Arial, Helvetica, sans-serif">
                    <data-collection
                      class="cards"
                      data-gjs-data-resolver='{"collectionId": "ppl", "dataSource": {"type":"data-variable", "path":"globalData.people.data" } }'
                    >
                      <data-collection-item class="card">
                        <div class="card-left">
                          <div class="name" data-gjs-type="data-variable" data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "name" }'></div>
                          <div class="title" data-gjs-type="data-variable" data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "title" }'></div>
                          <div class="company" data-gjs-type="data-variable" data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "company" }'></div>
                        </div>
                        <div class="card-right">
                          <div class="contact">
                            <data-variable data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "email" }'></data-variable><br/>
                            <data-variable data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "phone" }'></data-variable><br/>
                            <b data-gjs-type="data-variable" data-gjs-data-resolver='{"collectionId": "ppl", "variableType": "currentItem", "path": "website" }'></b>
                          </div>
                        </div>
                      </data-collection-item>
                    </ul>
                  </body>
                <html>
              `,
            }
          ]
        }
      },
      dataSources: {
        globalData: {
          people: [
            {
              name: 'Alice Morgan',
              title: 'Creative Director',
              company: 'Morgan Studio',
              email: '[email protected]',
              phone: '+1 234 567 8901',
              website: 'morganstudio.com'
            },
            {
              name: 'Ben Carter',
              title: 'Product Manager',
              company: 'Carter Labs',
              email: '[email protected]',
              phone: '+1 555 987 1234',
              website: 'carterlabs.io'
            },
            {
              name: 'Carla Rossi',
              title: 'Marketing Lead',
              company: 'Rossi & Co',
              email: '[email protected]',
              phone: '+39 012 3456 789',
              website: 'rossico.com'
            },
            {
              name: 'Daniel Kim',
              title: 'UX Designer',
              company: 'Designory',
              email: '[email protected]',
              phone: '+82 10 1234 5678',
              website: 'designory.com'
            },
            {
              name: 'Eva Liu',
              title: 'Software Engineer',
              company: 'Codeverse',
              email: '[email protected]',
              phone: '+44 20 7946 0958',
              website: 'codeverse.dev'
            },
            {
              name: 'Frank Zane',
              title: 'Operations Lead',
              company: 'Logify',
              email: '[email protected]',
              phone: '+1 312 321 4321',
              website: 'logify.org'
            },
            {
              name: 'Grace Tang',
              title: 'Data Analyst',
              company: 'QuantIQ',
              email: '[email protected]',
              phone: '+61 3 9123 4567',
              website: 'quantiq.com'
            },
            {
              name: 'Hugo Martins',
              title: 'Art Director',
              company: 'Studio Verde',
              email: '[email protected]',
              phone: '+55 11 98765 4321',
              website: 'verde.studio'
            },
            {
              name: 'Isabel Romero',
              title: 'HR Manager',
              company: 'PeopleFlow',
              email: '[email protected]',
              phone: '+34 91 234 5678',
              website: 'peopleflow.com'
            },
            {
              name: 'Jason Lee',
              title: 'CTO',
              company: 'Devstream',
              email: '[email protected]',
              phone: '+1 800 123 4567',
              website: 'devstream.io'
            },
            {
              name: 'Klara Schmidt',
              title: 'Finance Consultant',
              company: 'LedgerWise',
              email: '[email protected]',
              phone: '+49 30 1234 5678',
              website: 'ledgerwise.de'
            },
            {
              name: 'Luis Hernandez',
              title: 'Full Stack Developer',
              company: 'BitForge',
              email: '[email protected]',
              phone: '+52 55 1234 5678',
              website: 'bitforge.tech'
            },
            {
              name: 'Nina Patel',
              title: 'Content Strategist',
              company: 'StoryGrid',
              email: '[email protected]',
              phone: '+91 22 4000 1234',
              website: 'storygrid.com'
            },
            {
              name: 'Omar Khalid',
              title: 'Growth Hacker',
              company: 'ScaleUp',
              email: '[email protected]',
              phone: '+971 4 567 1234',
              website: 'scaleup.app'
            },
            {
              name: 'Yuki Tanaka',
              title: 'Innovation Lead',
              company: 'Neogenics',
              email: '[email protected]',
              phone: '+81 3 1234 5678',
              website: 'neogenics.jp'
            }
          ]
        }
      },
      // Custom layout for demo purposes
      layout: {
        default: {
          type: 'row',
          height: '100%',
          children: [
            {
              type: 'sidebarLeft',
              children: { type: 'panelLayers', header: { label: 'Layers', collapsible: false, icon: 'layers' } }
            },
            {
              type: 'canvasSidebarTop',
              sidebarTop: {
                rightContainer: {
                  buttons: ({ items }) => [
                    {
                      id: 'print',
                      icon: '<svg viewBox="0 0 24 24"><path d="M18 3H6v4h12m1 5a1 1 0 0 1-1-1 1 1 0 0 1 1-1 1 1 0 0 1 1 1 1 1 0 0 1-1 1m-3 7H8v-5h8m3-6H5a3 3 0 0 0-3 3v6h4v4h12v-4h4v-6a3 3 0 0 0-3-3Z"/></svg>',
                      onClick: ({ editor }) => editor.runCommand('presetPrintable:print')
                    },
                    ...items.filter(item => !['showImportCode', 'fullscreen'].includes(item.id))
                  ]
                }
              }
            },
            { type: 'sidebarRight' }
          ]
        }
      },


  }}
/>

Plugin options​

PropertyTypeDescription
licenseKey
string

The license key for the plugin. This is optional, only required if the plugin is used outside of Studio SDK.

Example
"your-license-key"
blockPageBreak
Block

Additional Block properties of the page break component. Pass false to avoid adding the block.

Example
{
  "category": "Extra",
  "label": "My label"
}
fixedHeight
boolean

With this option enabled the document won't grow in height and it won't be possible to scroll.

Default
false
devices
function

Customize the printable devices.

Example
devices: ({ items }) => {
 return [
   ...items,
   {
     id: 'custom',
     name: 'Custom',
     width: 100,
     height: 200,
     unit: 'mm'
  }
 ]
}
selectedDevice
string

Selected device id. Available printable sizes: 'a5', 'a5-portrait', 'a4', 'a3', 'b5', 'b4', 'letter', 'legal', 'ledger'.

Default
a4
enablePageBreaksSpot
boolean

Enables the page break indicators in the canvas.

Default
true
